Lesson 6 of 6 · Verification and design revision
Prove the requirement—and check the purpose
8 minute lesson · 3 checks along the way
Your goal for this lessonDistinguish verification from validation and use new evidence to revise a design consistently.
In this lesson 4 sections · 3 checks
Using archive links & definitions
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Read & understand
Two important questions
asks whether the realized system meets its specified requirements. asks whether it serves the intended use and stakeholder need in the relevant context. The same activity may contribute to both, but the questions differ. A system can meet a poorly chosen requirement while still failing the mission’s actual purpose.
In a fictional flood-mapping project, a product arrives within its specified six-hour deadline but local users needed it within two hours. Delivery may satisfy that particular while the service fails the intended decision timescale. The lesson is to repair the requirement and design connection, not to redefine success afterward.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Match evidence to the claim
Verification evidence can come from testing, analysis, inspection or demonstration as appropriate to the requirement. Counting installed connectors is different from measuring communication performance under load. Choose a method that can actually establish the required property and state its limitations.
A successful launch proves an important event occurred. It does not by itself verify every later instrument measurement or validate every promised service. Mission claims should identify the stage and capability established by the available evidence rather than allowing one success to stand for all remaining work.
Read & understand
Revise the connected system
Suppose testing shows a camera needs longer exposures than planned. That can affect pointing stability, observation duration, power, data cadence and operations. A controlled revision follows those dependencies, updates the relevant requirements and changes the verification plan where necessary.
Record why the revision is needed and which tests must be repeated. If a workaround changes the scientific coverage, the team must reassess whether the original question can still be answered. A design is not complete merely because its individual documents no longer show an obvious error.

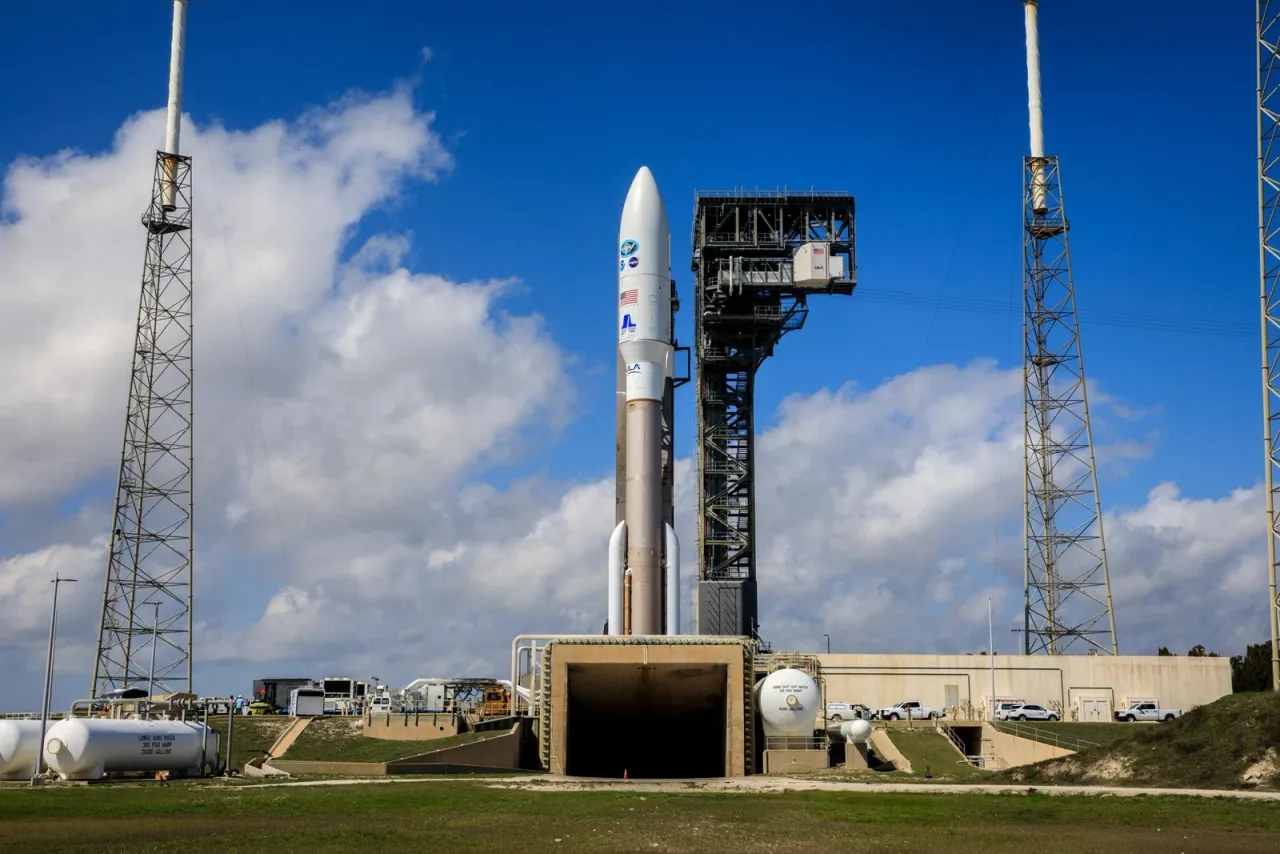

The Atlas V carrying the spacecraft later named GOES-18 stands at the pad on February 28, 2022. This is prelaunch imagery, not evidence that the launch or the later weather service had already succeeded.
Look closely
Which claim can this photograph support, and which needs later evidence?
See what to notice
It documents the vehicle at the pad. Launch success, on-orbit instrument performance and useful weather products each require additional evidence from their own stage of the mission.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Close the loop with evidence
Before claiming readiness, connect each essential requirement to applicable evidence and each important operational need to a validated use. Unresolved issues should be explicit, with their implications understood. This is a structured engineering judgment rather than a claim that testing can remove all uncertainty.
The course began with a question and ends with a result that can be evaluated against it. That loop is what makes mission design a learning process: observations change models, tests change designs, and documented decisions keep the complete system coherent.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
Explore further · Optional
Go to the source
Explore the evidence behind this lesson. These optional readings and videos open in a new tab.
