Lesson 4 of 6 · Learning from spectra
Read patterns in the light
9 minute lesson · 3 checks along the way
Your goal for this lessonExplain what spectral lines constrain and test a simple Doppler interpretation against competing causes.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Spread the light into more detailed measurements
A records how a measured signal varies with wavelength or frequency. A separates light into channels narrow enough to reveal structure that broad imaging filters may blend together. A continuum supplies a broad underlying shape; emission lines rise above it, while absorption lines dip below it. The appearance depends on the material, its physical conditions, and the path the radiation follows before reaching the detector.
Atoms and molecules interact with particular photon energies, creating patterns of possible transitions. Comparing several observed features with laboratory wavelengths helps identify the participating species. A line is evidence about the material interacting with the light, which may be in the source atmosphere or somewhere along the sightline. It does not automatically identify the composition of every hidden interior region, or of every object that overlaps in the image.
A fingerprint still needs physical interpretation
Line strength depends on more than abundance. Temperature changes excitation and ionization; density, pressure, optical depth, and the geometry of the emitting or absorbing material affect the result. A strong feature can become saturated, so doubling the relevant material need not double its observed depth. Weak or absent lines may reflect an unfavorable physical state or insufficient sensitivity rather than the complete absence of an element.
Different combinations of parameters can sometimes reproduce similar data. This is a , not evidence that spectra are useless. Additional transitions, a wider wavelength range, better resolution, or independent temperature constraints can distinguish the possibilities. The Cosmic Origins Spectrograph on the Hubble Space Telescope studies ultraviolet spectra. Its photograph shows prepared hardware and technicians; it cannot itself display the distant gas properties inferred from the instrument’s later measurements.

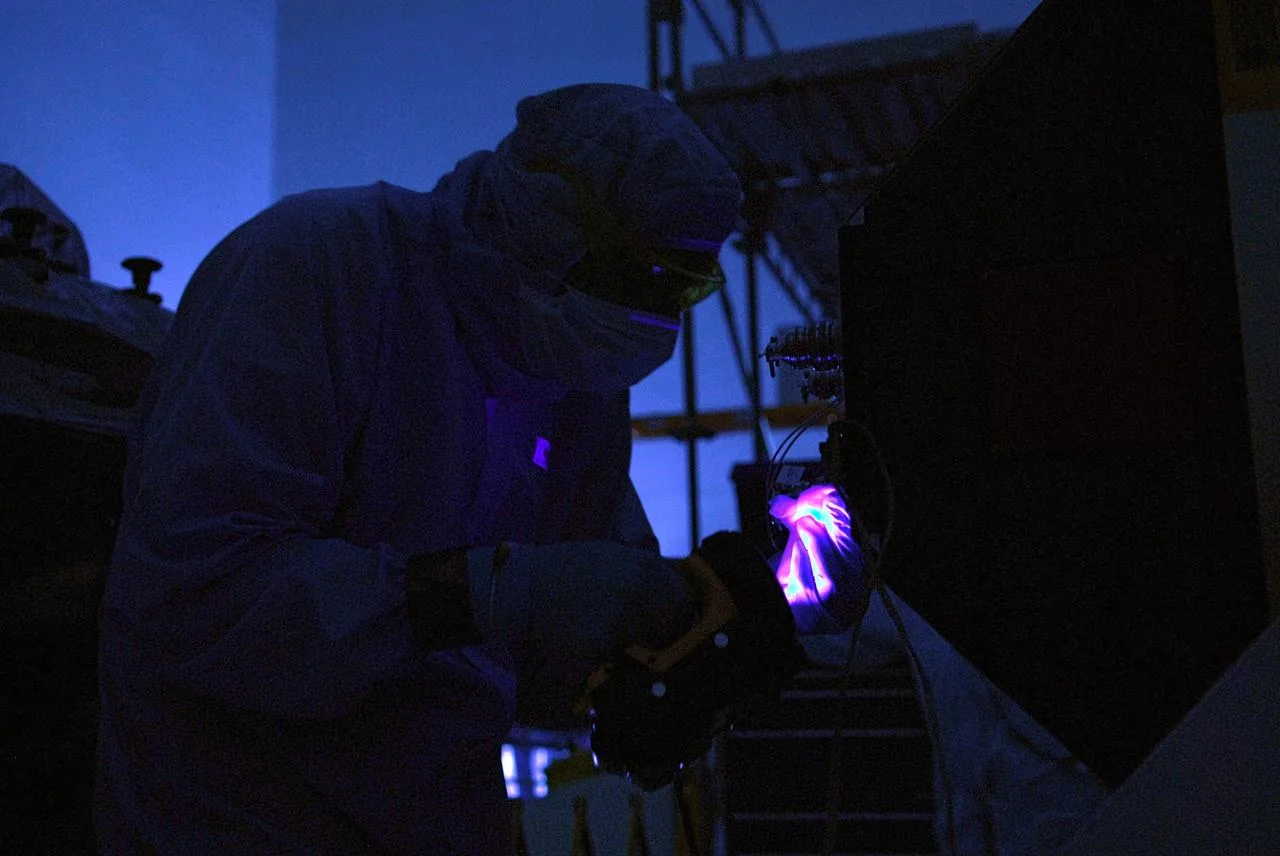

NASA photograph KSC-08pd2323 documents black-light inspection during cleaning of the Cosmic Origins Spectrograph at Kennedy Space Center. The inspection uses ultraviolet-induced fluorescence to reveal possible contamination. It is a ground photograph of technicians and equipment, not a recorded astronomical spectrum. The visible blue and violet illumination should not be mistaken for a wavelength-calibrated display of the ultraviolet radiation measured by the flight instrument.
Look closely
Which information would be required to turn a colored display into a usable spectrum?
See what to notice
A usable spectrum needs identified wavelength or frequency coordinates, a calibrated signal scale, the instrument response and resolution, and uncertainty information. Colored light in a hardware photograph does not provide those measurements.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Test a shared wavelength shift
In a fictional calibrated spectrum, identified laboratory lines at 500 and 600 nanometers appear at 500.5 and 600.6 nanometers. Both have the same fractional wavelength shift: 0.5/500 = 0.6/600 = 0.001. If the shift is entirely a low-speed Doppler effect along the line of sight, v is approximately c times that fraction. Using c ≈ 300,000 kilometers per second gives recession at about 300 kilometers per second.
The two lines shift by different numbers of nanometers because a common Doppler factor multiplies their wavelengths. Agreement supports a shared shift but does not independently prove its cause. The observer’s motion and wavelength need correction; gravitational and cosmological effects can also shift spectra. Our calculation explicitly assumes those effects are negligible or accounted for. A relativistic treatment replaces the approximation when speeds are not small compared with light speed.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Choose the next observation that distinguishes models
Suppose two atmospheric models fit one absorption feature equally well: one uses more absorbing material at one temperature, the other less material at another. Repeating only the same feature may reduce random noise while leaving that degeneracy intact. A second transition with a different temperature dependence could be more informative. The useful question is where the models predict measurably different outcomes, not which graph looks more convincing.
Instrument resolution and noise must accompany the comparison. A predicted narrow pair of lines may appear as one blended feature if the spectrograph cannot resolve them. Report what the available data constrain and which assumptions remain necessary. Spectroscopy is powerful because it connects repeatable laboratory physics to remote observations. Its strength comes from combining consistent clues, not from treating one line as a complete chemical inventory or an unambiguous velocity measurement.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
