Lesson 5 of 6 · Observations across wavelengths
Combine views that answer different questions
9 minute lesson · 3 checks along the way
Your goal for this lessonCompare wavelength-dependent observations while accounting for registration, resolution, sensitivity, and timing.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
One band cannot reveal every process
Visible light is one part of the electromagnetic . Infrared observations can trace cool dust emission and, at some wavelengths, penetrate obscuring dust more effectively than visible light. Ultraviolet observations can emphasize hot stars or selected atomic transitions. X-rays can trace very hot gas and energetic particles. These are useful associations, not exclusive labels: several mechanisms can emit in the same band, and one object can radiate across many bands.
The atmosphere transmits some wavelength ranges and blocks others. Space observatories extend access to radiation that cannot reach a ground telescope, while ground facilities can provide large collecting areas and complementary measurements in atmospheric windows. The Chandra X-ray Observatory and Spitzer Space Telescope therefore contributed different measurements of the universe. Neither was simply a visible-light camera with a different decorative color setting. Their detector systems responded to different radiation.
Make the comparison physically fair
To compare structures, align their sky coordinates and verify the angular scale and orientation. Images may have different sizes and point-spread functions. A sharp optical knot can be blurred into a larger X-ray region by the second instrument’s response. Two patches occupying the same screen position may instead reflect an alignment error. Position matching also needs the uncertainty in each measured location, not just a visual overlap.
, sensitivity, observation date, and matter too. An object missing from one panel may lie below that instrument’s detection threshold. A transient observed months apart may genuinely have changed. Comparing brightness between bands requires calibrated quantities with stated spectral coverage; equal screen colors or equal displayed sizes are not a shared physical scale. A composite can communicate several datasets clearly if its legend explains which observations each color represents.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Choose observations that can separate the possibilities
A fictional source lies behind dust. Model A predicts a visible-band of 1 unit and infrared-band flux of 8 units. Model B predicts the same visible flux but only 2 infrared units, in consistently defined bands. A calibrated infrared measurement gives 7.5 ± 1 unit, where the quoted uncertainty is one . On random uncertainty alone, A differs by 0.5 of that uncertainty, while B differs by 5.5.
The infrared measurement favors A over B under these assumptions; another visible measurement near 1 unit would do little to separate them. Before drawing a strong conclusion, check contamination, , and whether both models predict the same epoch. The exercise compares specified predictions, not universal infrared signatures of dust. A model outside this pair might also fit. Favoring one explanation is different from proving it is the only possible explanation.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Keep observations and display colors separate

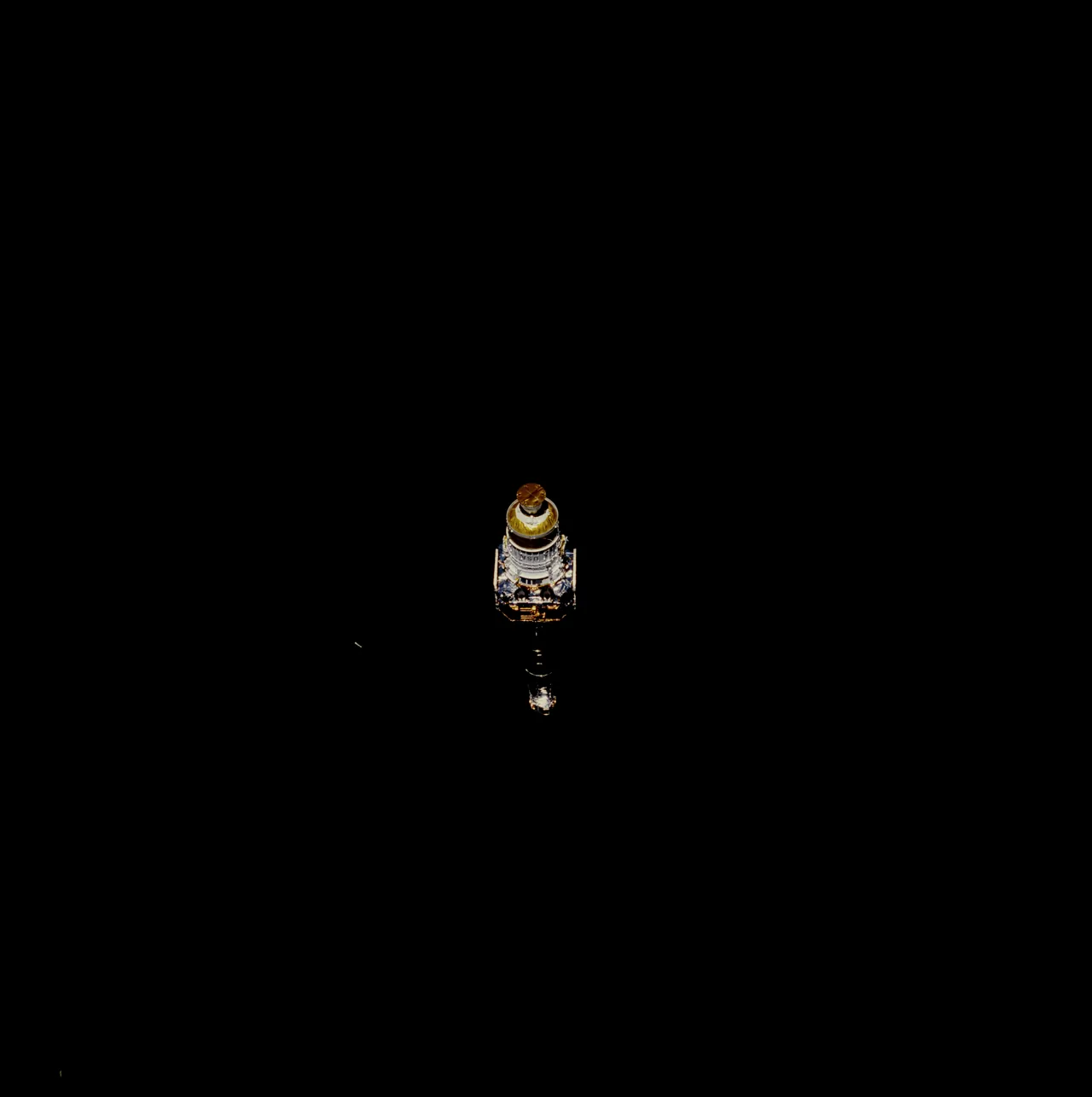

The accompanying Chandra deployment photograph was taken in visible light by a camera. It shows the observatory as a physical object; it is not an X-ray image of that object or an example of an X-ray celestial dataset. This distinction matters because an archive may contain hardware photographs, observations made by that hardware, diagrams, and simulated scenes. The media caption tells you which relationship applies.
When reading a release, first identify each data layer and the question it addresses. Ask whether changes in appearance follow from different emission processes, different absorption, different angular resolution, or different observation times. A careful comparison can expose otherwise hidden material and processes. It works by preserving the differences between the measurements and their limits, then testing a common physical interpretation against all of them.
The Chandra X-ray Observatory shortly after release from Columbia during STS-93 on July 23, 1999, in NASA frame STS093-706-035. This visible-light photograph depicts the observatory; it is not a celestial image made by Chandra’s X-ray detector. The broad dark background is part of the original photographic composition.
Look closely
Does the word ‘X-ray’ in the observatory’s name tell you the wavelength used to make this particular picture?
See what to notice
No. Here a separate visible-light camera photographed the spacecraft. Chandra’s scientific detector collects X-ray observations of celestial targets. The image maker, image subject, and science measurement must be distinguished.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
