Lesson 3 of 6 · Measuring distance with parallax
Use motion of the viewpoint as a ruler
10 minute lesson · 3 checks along the way
Your goal for this lessonConvert a well-measured annual parallax into distance while separating geometry from proper motion and measurement uncertainty.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
The apparent shift comes from the viewpoint
Hold a finger still and alternate which eye is open. Its direction against a distant changes because the viewpoints are separated. Annual stellar uses the same geometry on a much larger baseline: an observer moves around the Sun while measuring stellar directions. Nearby stars have larger annual shifts than otherwise comparable distant stars. This apparent periodic motion is distinct from the star’s own movement through space.
In the standard convention, the parallax angle p corresponds to a one-astronomical-unit baseline, approximately Earth’s orbital radius. For the ideal geometry measured across opposite sides of the orbit, the largest peak-to-peak shift is 2p, not p. Real observations fit the projected annual pattern for the source’s sky position. A star’s , the observer’s actual trajectory, and other astrometric effects are modeled alongside it.
The parallax convention: p is half the full excursion
Original instructional schematic with greatly exaggerated angles and distances not to scale. The worked numbers are invented. The maximum full excursion is twice p in this ideal geometry; real astrometry fits the sky projection and the observer’s trajectory over time.
Open full-size diagram in a new tab: The parallax convention: p is half the full excursionKeep the angle and unit definitions together
A is the distance corresponding to a parallax of one arcsecond for that standard baseline. The familiar small-angle relation is d in parsecs = 1 divided by p in arcseconds. One arcsecond is 1/3,600 of a degree; one is one-thousandth of an arcsecond. Consequently, d in parsecs = 1,000 divided by p in milliarcseconds. Neither formula uses the full peak-to-peak annual displacement as p.
Hipparcos and Gaia measured stellar directions repeatedly to build astrometric catalogs. The spacecraft photograph in this lesson documents actual measuring hardware, not a star’s parallax ellipse. Multiple epochs are essential because a pair of positions may mix parallax, proper motion, orbital motion within an unresolved binary, and instrumental effects. The annual geometry supplies a distance constraint without requiring the star to have a known .

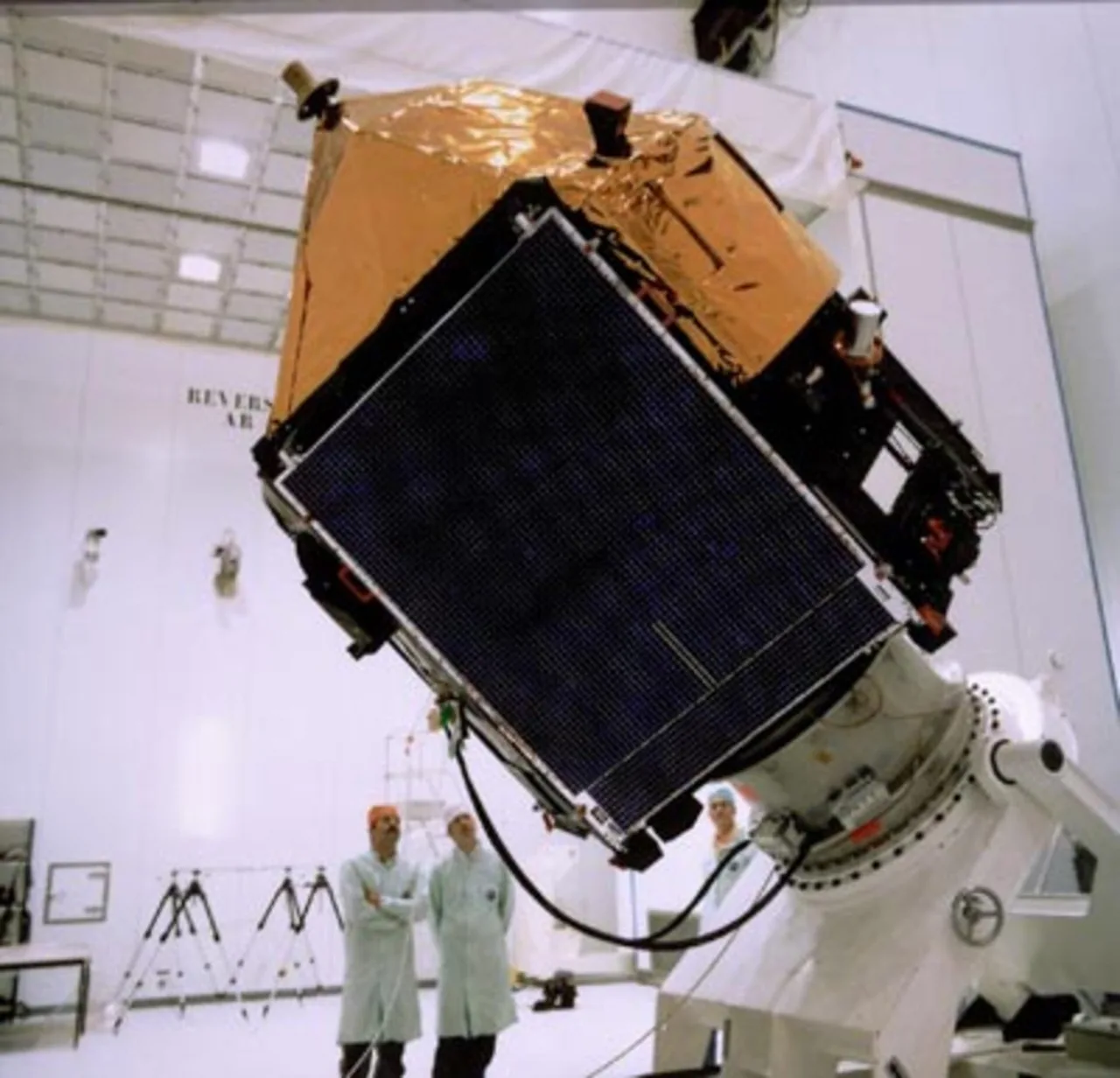

ESA’s photograph shows Hipparcos at ESTEC, with a solar panel, insulated spacecraft body, and ground support equipment visible. It documents the physical observatory behind stellar-position measurements. Neither a parallax angle nor a stellar distance can be read from this hardware photograph.
Look closely
What additional observations would turn the spacecraft’s role into a distance measurement for a particular star?
See what to notice
Repeated calibrated stellar directions, known observer positions, and an astrometric fit separating annual parallax from proper motion and other effects are needed. The image establishes hardware context rather than displaying that time series.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Work a precise example and inspect its bounds
A fictional star has a fitted parallax of 20 milliarcseconds with a small reported uncertainty of 1 milliarcsecond. Converting gives p = 0.020 arcsecond, so the reciprocal estimate is 50 parsecs. To see the nonlinearity, map the parallax interval from 19 to 21 milliarcseconds into distance: 1,000/21 is about 47.6 parsecs, while 1,000/19 is about 52.6 parsecs. The endpoints reverse order.
This exercise maps an interval; it does not create a complete probability distribution for distance. Its modest asymmetry already shows why “plus or minus” does not pass unchanged through a reciprocal. When parallax is weak relative to its uncertainty, direct inversion can give unstable or misleading estimates. A fuller inference combines the measurement model, information, and explicitly stated assumptions about plausible distances rather than pretending the noisy reciprocal is exact.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Do not turn uncertainty into impossible geography
A fitted parallax can even be negative when noise or systematic effects overwhelm a small signal. That does not mean the star has a physically negative distance, nor that every such measurement contains no information. Rejecting all negative estimates can bias a sample. Astronomers examine the likelihood, quality flags, correlations, and any calibration offset; they explain how additional assumptions influence the distance estimates that result.
For a sound comparison, ask whether the angle is annual parallax or total displacement, which units were used, and how the uncertainty compares with the signal. Check that the method separates yearly viewpoint motion from the star’s motion. Report an appropriate interval instead of copying every decimal from a catalog. Geometry provides the ruler, while careful measurement and inference determine how precisely that ruler can be read.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
