A hurricane seen through radar

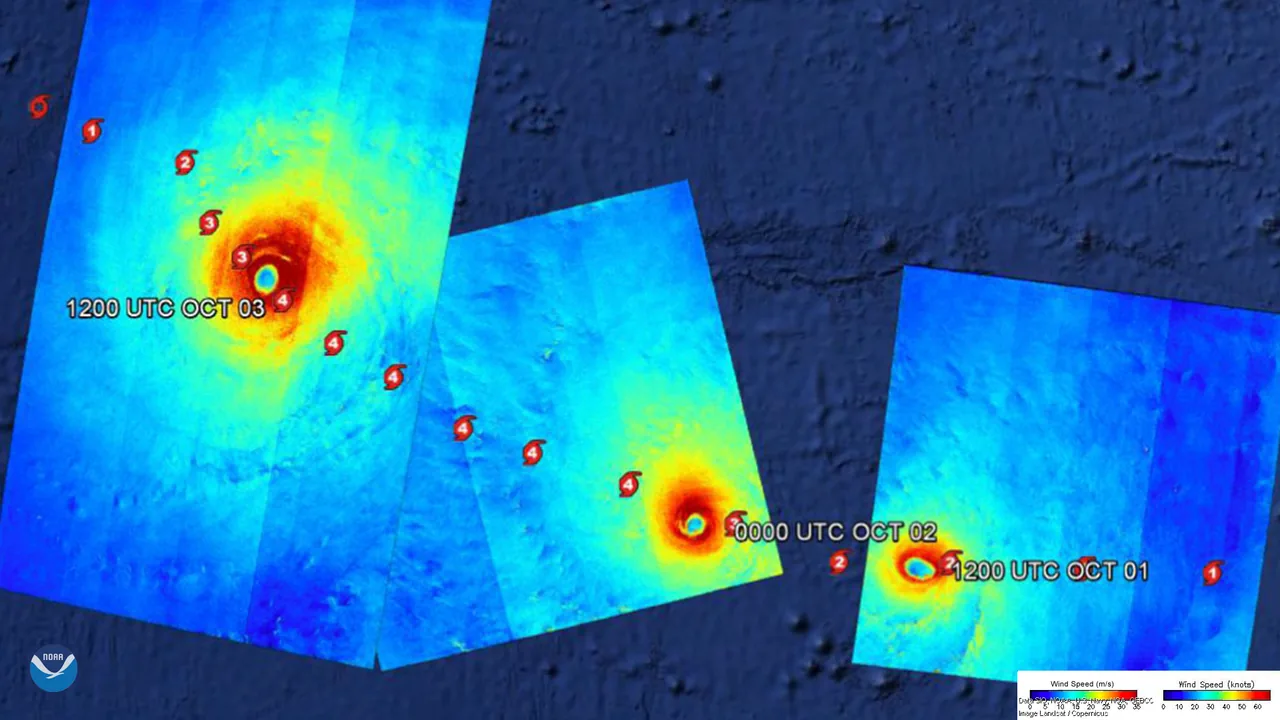

NOAA documented RADARSAT-2 observations of Hurricane Marie in October 2020. The illustrated product uses radar measurements to investigate winds over the ocean. The archive card Radarsat-2 provides context about the spacecraft responsible for the observations.

The colors in the preserved image are a scientific display of a derived quantity. They are not the colors that an astronaut would see while looking at the ocean. Reading the legend is part of reading the result.

Wind affects the ocean surface, and the surface affects radar backscatter. A retrieval method connects those measurements with an estimate of wind conditions. That connection depends on the method and its valid range; the sensor does not directly photograph a number written on the water.

A validation exercise might compare the product with an independent observation close in time and location. Differences could come from uncertainty, differing sampling scales or a changing storm. Investigating those possibilities is more useful than assuming one colorful map is automatically exact.

A storm changes as it moves. Combining scenes acquired hours apart without preserving their times can create a misleading impression of one simultaneous state. A report should distinguish acquisition time from download time and publication time.

In a classroom example, an observation acquired at 09:00 reaches an analyst at 11:30. Its delivery latency is two and a half hours. Faster delivery would improve timeliness, but would not retroactively change the scene’s acquisition time or remove retrieval uncertainty.
