Lesson 6 of 6 · Chinese Lunar Exploration Program · China
Chang’e: build capabilities across a lunar program
10 minute lesson · 3 checks along the way
Your goal for this lessonTrace the Chinese Lunar Exploration Program’s orbit–land–return progression through 2024 and explain how relay communications and sample-transfer stages support different objectives.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
A sequence of capabilities, not one repeated mission
China began its lunar exploration program in 2004 with an initial progression organized around orbiting, landing, and returning material. The Chang'e missions developed those capabilities through different spacecraft and operations. Chang'e 1 and Chang'e 2 conducted orbital ; Chang'e 3 / Yutu landed in 2013 with a rover; Chang'e 5 returned lunar samples in 2020. A later mission could build on earlier hardware or experience while still introducing a new objective and a different chain of risks.
This lesson follows documented achievements through the 2024 Chang'e 6 sample return. A dated program overview is useful for understanding the aims of its period, but an announced future mission is not an accomplished result. Keep planning statements beside their dates and compare them with subsequent flight records. The program’s familiar name provides continuity across missions; it does not make every spacecraft, rover, relay, and payload the same thing.
Put a relay where both ends can be reached
Chang'e 4 / Yutu-2 landed on the Moon’s in January 2019 and deployed Yutu-2. The far side is the hemisphere turned away from Earth on average, not a hemisphere in permanent darkness. The Moon’s body blocks a direct radio path from much of that surface to Earth. Queqiao supplied a relay connection from an orbit around the Earth–Moon L2 region, allowing messages to travel around the obstruction through a spacecraft that could see the endpoints.
A relay does more than add another antenna to a diagram. Operators need a usable path for each hop, suitable pointing, compatible equipment, enough power, and time to transmit the data. The connection can become a even if the surface instruments are working well. A science observation is useful to Earth-based investigators only when its record is delivered with enough information about timing, location, calibration, and processing to interpret it.

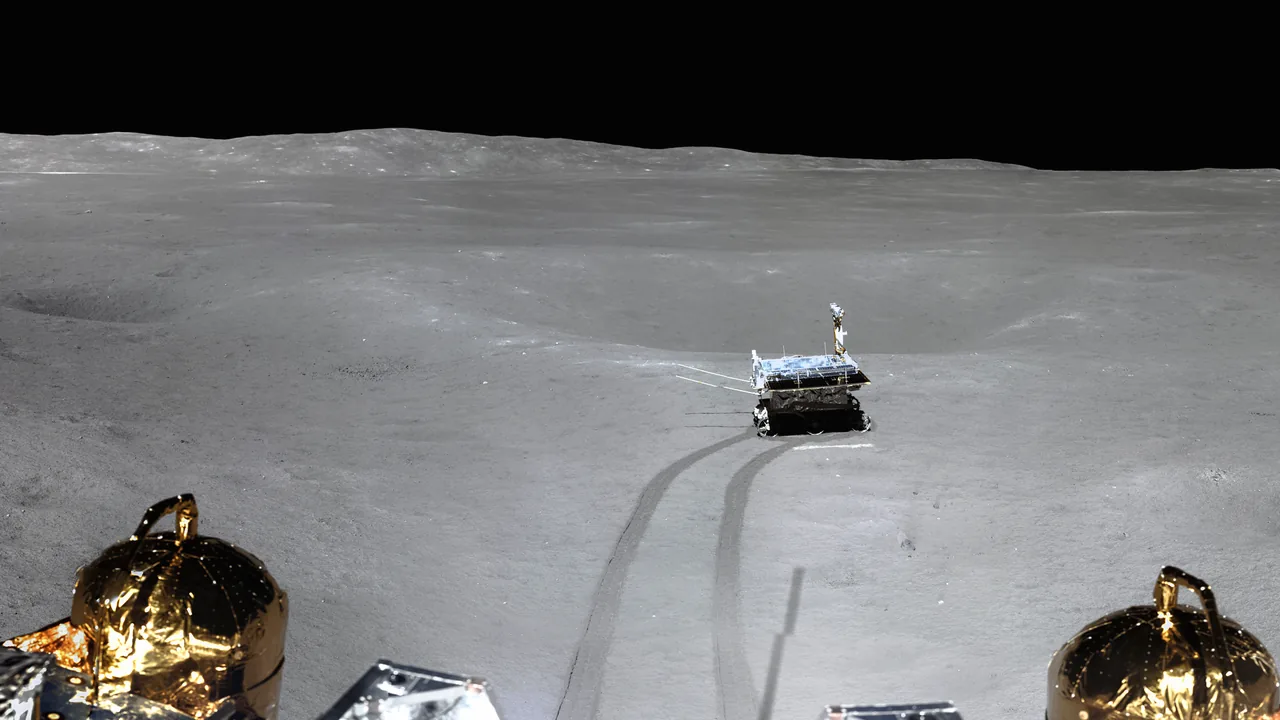

Yutu-2 and its tracks appear in this crop of the Chang’e 4 landing-site panorama released in 2019. The stitched panorama documents far-side rover operations; it is not an image of Chang’e 6 or its 2024 sample collection. Cropped from the CNSA/IAU panorama.
Look closely
Which observation supports movement across this patch of ground, and which part of the communications system is outside the picture?
See what to notice
The tracks and rover provide visible evidence of a traverse in this local scene. The relay spacecraft and Earth stations are outside the picture; their operation must be established from other records.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Find the bottleneck in a simplified data return
Imagine a rover has 120 megabits ready to send. Its rover-to-relay link carries 2 megabits per second, while the relay-to-Earth link carries 1 megabit per second. In a deliberately simplified schedule, the relay first receives the complete file and only then starts sending it onward. Reception takes 60 seconds and forwarding takes 120 seconds, giving 180 seconds before completion, ignoring propagation, setup, packet overhead, and retransmissions.
Doubling only the first link to 4 megabits per second reduces reception to 30 seconds, but forwarding still takes 120. The total becomes 150 seconds, not half of 180. Real relay systems may overlap transmissions and use different schedules; these invented figures are not Chang'e link rates. The example shows why improving one component does not guarantee the same proportional improvement in the whole system.
Improve one link, then recompute the whole schedule
Original fictional store-and-forward model: the relay receives the complete 120-Mb file before sending it onward. Doubling only the first rate changes the total from 180 to 150 seconds. Real link schedules can differ; no Chang’e rates or geometry are represented.
Open full-size diagram in a new tab: Improve one link, then recompute the whole scheduleCheck 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Return material, then establish what it represents
Chang'e 6 returned material from the lunar far side in June 2024. Its sequence included landing, collecting surface and subsurface material, ascending, docking in lunar orbit, transferring the sample container, and returning a capsule to Earth. Queqiao-2 supported the far-side communications. Each completed stage was necessary for the final return, but success at one stage did not remove the need to verify the next.
Once material reaches a laboratory, a new chain of work begins: document the collection setting, preserve samples, control contamination, and compare measurements using suitable standards. A far-side sample expands the geographical range of directly studied material without representing every far-side landscape. The progression from orbital reconnaissance to ground operations and returned specimens is valuable because the methods constrain one another. A program’s scientific legacy lies in that connected evidence as well as its engineering milestones.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
