Lunokhod: a laboratory that could choose its next stop
9 minute lesson · 3 checks along the way
Your goal for this lessonExplain the relationship between Lunokhod and Luna, connect mobility with local scientific comparisons, and distinguish passive laser ranging from resumed rover operation.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Separate the journey from the mobile laboratory
Luna 17 delivered Lunokhod 1 to the Moon in 1970, and Luna 21 delivered Lunokhod 2 in 1973. The Luna spacecraft supplied the voyage and landing; the eight-wheeled Lunokhod vehicles carried out the mobile surface investigations. A mission record and a rover record can therefore refer to different parts of one exploration effort. Counting them as independent landings would duplicate the event, while omitting the rover would hide the work that followed.
Mobility changed the questions investigators could ask. A fixed lander studies the neighborhood it reaches; a rover can compare several patches of ground, approach a feature, and document a route between observations. That freedom remains bounded by terrain, power, temperature, communications, and time. Distance traveled is useful operational information, but scientific value also depends on which places were examined and what measurements were made there.
Drive through a delayed window
Teams on Earth controlled the Lunokhod rovers using returned pictures and other measurements. Their view was mediated by cameras and a radio link, rather than a driver looking directly through a windshield. The lid carried solar cells for daytime energy collection and closed to help conserve heat during the long night. Scheduling a traverse therefore connected a geological objective with illumination, available energy, and the conditions the vehicle could survive.
Remote control cannot remove the time needed for a signal to travel. A camera view is already old when it arrives, and a command needs additional time to reach the rover. Operators must allow for that delay, image-update intervals, processing, and vehicle response. This is why a safe route is not simply the shortest line drawn across a picture. Unseen terrain and incomplete depth information can matter as much as a clearly visible obstacle.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Work through an idealized control delay
Suppose the one-way radio distance is 390,000 kilometers and use a rounded light speed of 300,000 kilometers per second. The one-way is 1.3 seconds. If an image is transmitted immediately, an operator responds instantly on receipt, and the command returns along the same distance, at least 2.6 seconds pass from the pictured event to command arrival. This deliberately ignores every other delay in the actual control system.
At a hypothetical constant speed of 0.10 meters per second, the rover moves 0.26 meters during those 2.6 seconds. That distance is only the propagation contribution, not a safe stopping-distance specification: camera timing, human decisions, processing, braking, and terrain add other considerations. Nor are these numbers measured Lunokhod operating settings. The exercise shows why an apparently modest signal delay must be connected to vehicle motion and the scale of nearby hazards.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
An inactive rover can still carry a useful instrument
Lunokhod 1 carried a French-built laser . Earth-based equipment sends a pulse and measures returning light, allowing the distance to be constrained through travel time. In 2010, improved position information from Lunar Reconnaissance Orbiter images helped an observing team acquire returns from that reflector. The published study describes a renewed measurement opportunity, not the rover’s motors or radio system returning to service decades after operations ended.
A retroreflector redirects incoming light without needing the rover to drive or generate a radio reply. Interpreting its returns still requires timing, geometry, atmospheric corrections, and instrument calibration. The old vehicle can thus contribute to a new experiment through a different mechanism. Connect that result with its original context: Soviet rover engineering, a French optical instrument, later orbital , and ground-based researchers all played distinct roles in producing the evidence.

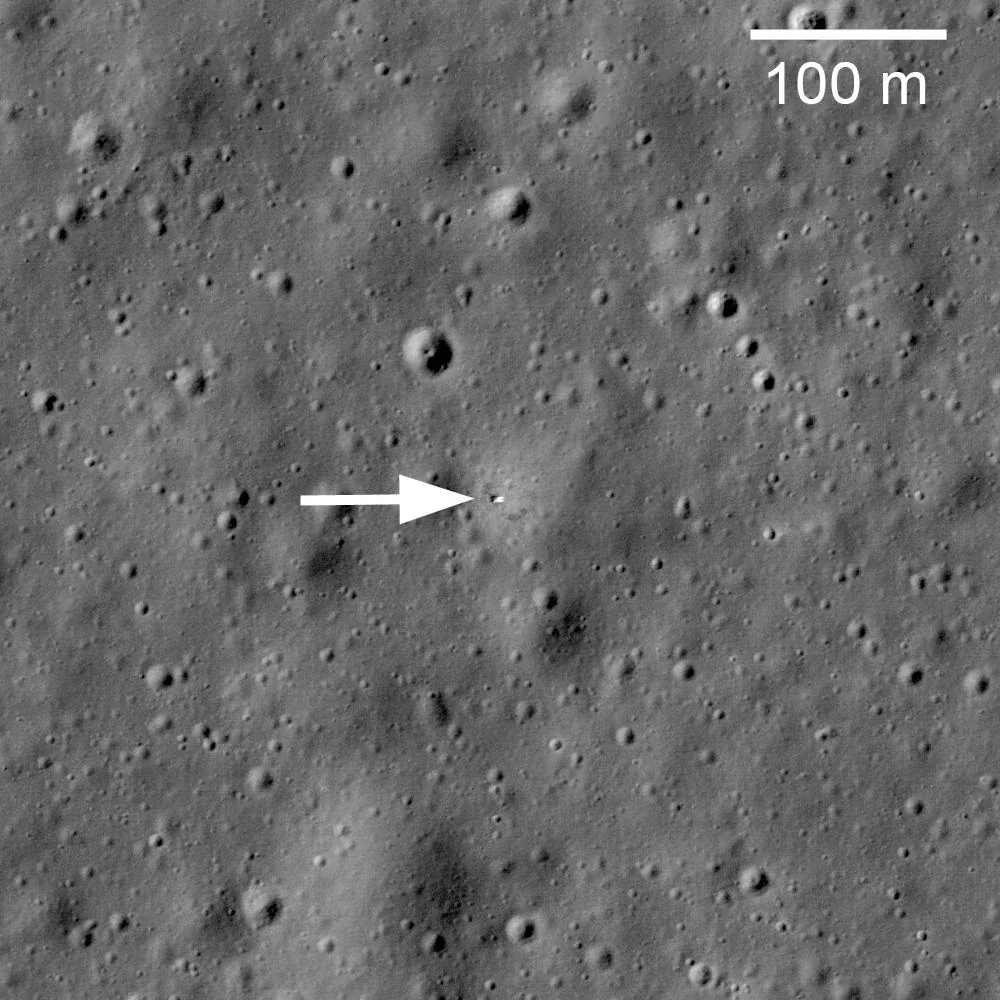

Lunar Reconnaissance Orbiter’s Narrow Angle Camera imaged the Luna 17 lander in Mare Imbrium, where it delivered Lunokhod 1 in November 1970. This annotated crop of LROC frame M114185541RE marks the lander with an arrow and includes a 100-meter scale bar. The marked object is the delivery lander, not a close-up of the rover.
Look closely
Why must the marked lander and the rover be identified separately when connecting this picture with the 2010 laser-ranging result?
See what to notice
The arrow locates the delivery lander. The rover carried the reflector and required its own position identification. Finding one component does not turn it into the other or show that either vehicle’s active systems restarted.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
