Lesson 2 of 6 · Surveyor program · United States
Surveyor: test the ground by touching it
9 minute lesson · 3 checks along the way
Your goal for this lessonConnect Surveyor’s controlled landings and local measurements with Apollo planning while recognizing the limits of extrapolating from a few sites.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Turn a landing into a measurement
A photograph can reveal a slope or a boulder, but it does not directly tell an engineer how deeply a loaded will sink. Surveyor addressed that gap by landing robotic spacecraft on the Moon and examining the surface at ground level. NASA’s Jet Propulsion Laboratory managed the project, Hughes Aircraft built the landers, and tracking stations connected the spacecraft with teams on Earth. Preparing for Apollo brought engineering tests and scientific questions into the same mission.
Surveyor used a large to remove much of its approach speed, followed by smaller controllable engines during the final descent. Measurements of motion fed the landing control system. The legs absorbed the remaining touchdown loads and provided evidence about contact with the ground. Surveyor 1 landed in June 1966. This was the first successful American lunar ; the Soviet Luna 9 had already landed that February.
Ask what each instrument can establish
Seven Surveyors flew between 1966 and 1968, and five landed successfully. Their instrument sets were not identical. Television cameras documented the surroundings, Surveyor 3 and Surveyor 7 used scoops for soil-mechanics experiments, and the later missions carried instruments that investigated composition. Images of disturbed material, applied forces, and chemical measurements answer related but different questions. A surface can have a recognizable composition while still behaving differently when packed, fractured, or covered with loose particles.
Surveyor 6 added a short powered hop after its initial landing. That maneuver tested engine restart and changed the spacecraft’s position enough to expose a new view of its earlier contact area. Surveyor 7 explored terrain near Tycho, broadening the geological setting beyond the earlier landing-site . These changes show how a program can move from establishing a capability to asking more varied questions once that capability has been demonstrated.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Calculate a load without predicting a soil
Imagine a stationary lunar lander with mass 600 kilograms, three equally loaded footpads, and lunar gravitational acceleration rounded to 1.6 meters per second squared. Its total downward weight is 600×1.6 = 960 newtons. If each pad has contact area 0.04 square meters, the combined area is 0.12 square meters. The average is therefore 960/0.12 = 8,000 pascals, assuming all three pads share the load evenly.
Doubling each pad’s area halves this average to 4,000 pascals for the same stationary weight. That result does not say how far the pads sink. Soil layering, packing, slope, and transient touchdown forces still matter; uneven loading can make one pad’s pressure exceed the average. This invented example is not a reconstruction of Surveyor’s dimensions. It separates a calculable applied load from the material response that a real experiment must investigate.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Join local evidence to a broader picture
The successful landers provided direct evidence that their particular surfaces could support their loads. Extending that conclusion to a future crewed spacecraft required attention to different masses, pad geometries, touchdown conditions, and locations. Orbital reconnaissance supplied the surrounding terrain context. Together, local experiments and regional images could reduce uncertainty more effectively than either alone, while still leaving hazards that pilots and mission planners had to address.
Apollo 12 later visited Surveyor 3. Pete Conrad and Alan L. Bean examined the spacecraft, and hardware including its television camera returned to Earth for study. A machine that had once been a remote observer became an inspected object with a known exposure history. The useful comparison is between documented preflight properties, lunar operating conditions, and returned hardware; an isolated surprising finding still needs careful handling and independent confirmation.

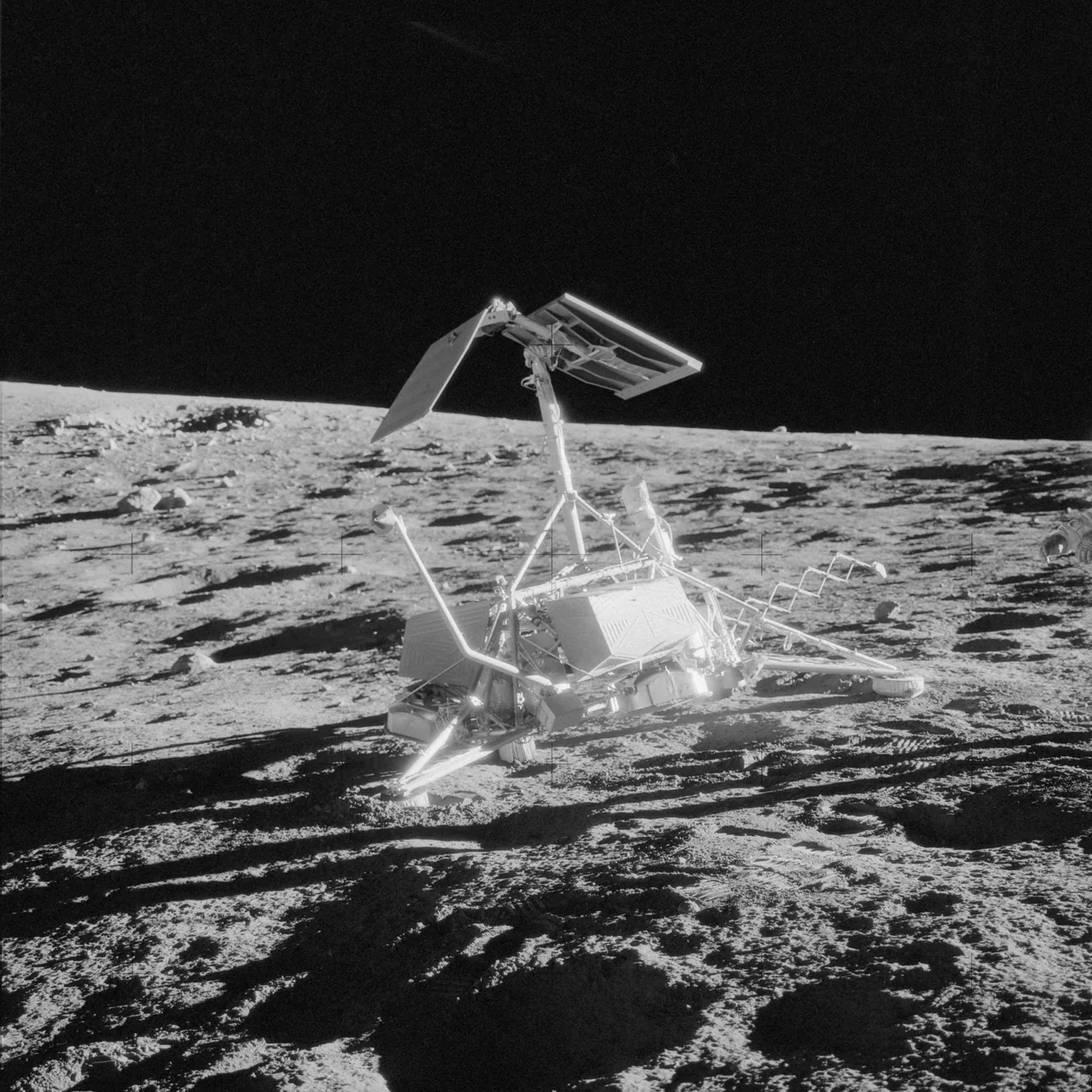

Apollo 12 photograph AS12-48-7121 shows Surveyor 3 on November 20, 1969, more than two years after its landing. Its mast, landing hardware, sampler, and surrounding surface can be inspected together. This is a later exposure record, not a frame of the original touchdown.
Look closely
What can this photograph show about ground contact, and what is missing for calculating touchdown forces?
See what to notice
The picture records visible hardware and disturbed ground at the time of the Apollo visit. Computing touchdown forces would require motion, timing, loading, and material-response information; later changes also limit treating this scene as the original landing state.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
