Lesson 6 of 6 · Chemical and electric propulsion tradeoffs
A gentle push can do a large job
9 minute lesson · 3 checks along the way
Your goal for this lessonCompare propulsion options using thrust, exhaust speed, power, propellant, and available maneuver time.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Change the energy source, keep the momentum exchange
Chemical engines obtain energy from reactions in their . instead uses electrical power to accelerate expelled material, directly or through heating. In common ion and Hall thrusters, electric fields accelerate charged particles. Both approaches exchange momentum with propellant. Electric propulsion is not a way to accelerate a spacecraft without reaction mass, and electricity is not the xenon stored in a propellant tank.
Many electric thrusters achieve high effective exhaust speeds and therefore high . That can reduce the propellant needed for a given ideal velocity change. Their available , however, is constrained by electrical power and hardware. Large exhaust speed does not by itself mean a rapid maneuver, a short journey, or enough force to lift a heavy vehicle from Earth’s surface.
Recognize demonstrated mission roles
Dawn used solar-powered ion propulsion during its journey to Vesta and Ceres, after a chemical Delta II rocket launched it from Earth. SMART-1 used a Hall-effect thruster on its gradual transfer toward the Moon. These historical missions show how a launch system and a spacecraft propulsion system can perform different jobs. Neither example means that an electric thruster alone lifted the spacecraft off the pad.
Dawn’s gridded ion thrusters and SMART-1’s were different designs. Both accelerated ions, but a Hall thruster does not use the same extraction-grid arrangement as a gridded ion engine. The archived PPS-1350 hardware photograph shows annular discharge channels, not a firing plume. Electrical power came from the spacecraft system; the photograph cannot establish power consumption or measured thrust.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Estimate the time behind a small force
Consider an invented deep-space vehicle with approximately constant mass of 500 kilograms and a constant, correctly directed thrust of 0.1 newton. Ignore external forces and assume propellant loss is small enough to neglect over this interval. Acceleration is 0.1 ÷ 500 = 0.0002 meters per second squared. A 10-meter-per-second velocity change would take approximately 50,000 seconds, or 13.9 hours of actual thrusting.
Now suppose usable electrical power falls and thrust is halved, while exhaust speed and efficiency stay fixed in this simplified comparison. Acceleration halves, so the same change takes about 27.8 hours. Solar power, instrument demand, eclipses, and operational interruptions can therefore affect a maneuver schedule. A calculation of thrusting time is not automatically the elapsed calendar time required by an actual trajectory.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Choose for the whole mission
Accelerating exhaust costs energy. In an ideal single-speed exhaust model, kinetic power is ½ times mass flow times exhaust speed squared. Combining that with thrust equals mass flow times exhaust speed shows why increasing exhaust speed at fixed useful jet power reduces thrust. Real systems also lose energy and carry power equipment. High propellant efficiency and high thrust are different properties, not interchangeable promises.
A landing maneuver with a short deadline may require substantial immediate thrust. A long transfer or station-keeping task may accept gentle thrust in exchange for reduced propellant demand. Selecting a system therefore means specifying the velocity change, available time, power, mass, and operating environment together. Start with what the mission must accomplish, then compare demonstrated capabilities; no propulsion label guarantees the fastest, cheapest, or most capable mission in every setting.

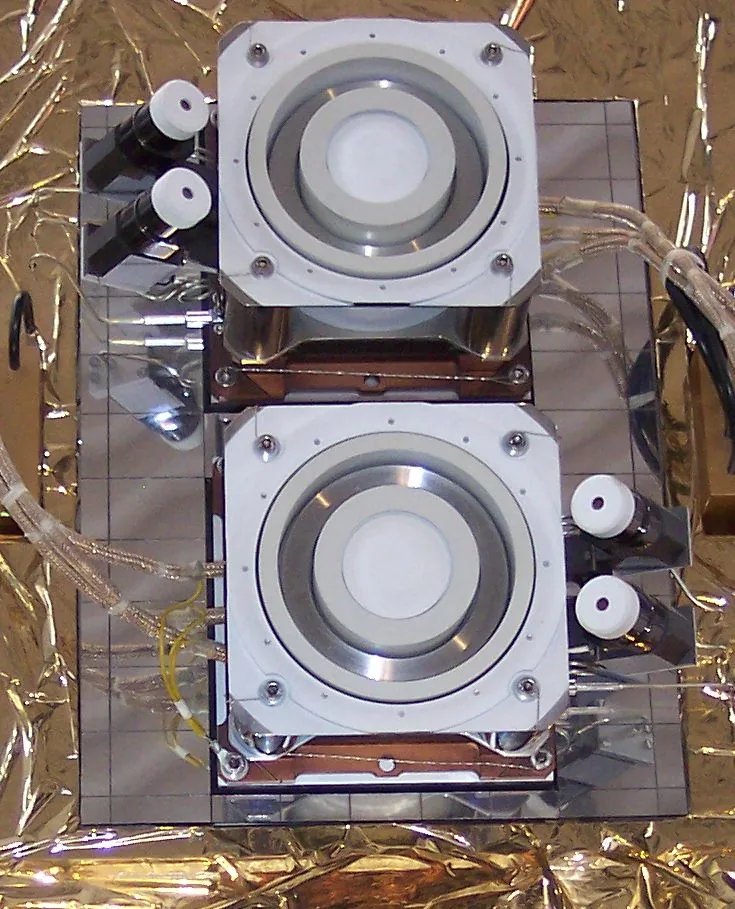

PPS-1350 Hall-thruster hardware photographed by Stahlkocher. The paired units show annular discharge channels; they are not the extraction grids of a gridded ion engine. This photograph is not identified as SMART-1’s flown single thruster. No plume is firing in the view.
Look closely
Locate each annular channel. What additional evidence would you need to compare this hardware’s thrust with the chemical engine shown earlier?
See what to notice
You would need operating measurements or a specification with thrust, power, propellant flow, and conditions stated. A hardware photograph provides neither a firing measurement nor the spacecraft’s full power system. The circular shape and displayed size do not reveal a thrust ratio.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
Go to the source
Explore the evidence behind this lesson. These optional readings and videos open in a new tab.
