Lesson 5 of 6 · Launch trajectories
Getting up is only part of getting to orbit
8 minute lesson · 3 checks along the way
Your goal for this lessonDistinguish altitude from orbital insertion and use density and speed to compare atmospheric loading.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Build motion around the planet
A rocket climbing vertically can reach space and still fall back to Earth. Orbit requires the appropriate velocity and direction as well as position. Near a circular orbit, that velocity is mostly sideways relative to the surface below. Gravity then continually curves the motion around the planet. Switching the engine off does not stop an orbiting spacecraft, and orbital flight does not require escaping Earth’s gravity.
An orbital launcher generally begins close to vertical, clearing its launch structure and the dense lower atmosphere. Its path then tilts to build horizontal velocity. Guidance controls that evolving path while balancing aerodynamic loads, vehicle capability, and the intended orbit. There is no universal altitude at which every rocket should suddenly turn sideways. Different destinations and vehicle designs require different trajectories.
Manage the air while gaining speed
is a useful indicator of aerodynamic loading: q = ½ρv². The symbol ρ means local air density, and v here means speed relative to the air. The formula combines thinness of air with motion through it. As a rocket climbs, density tends to fall while speed rises, so the largest dynamic pressure can occur partway through ascent rather than at liftoff or at maximum speed.
names that maximum dynamic-pressure condition. It is not a measurement of the loudest sound or the hottest engine. Actual forces also depend on vehicle shape, orientation, and aerodynamic coefficients. Flight planners can adjust the profile and trajectory to manage loads, subject to the hardware’s control limits. They also account for wind, gravity, and the velocity budget spent during ascent.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Compare two fictional flight snapshots
At snapshot A, air density is 0.4 kilograms per cubic meter and air-relative speed is 300 meters per second. The dynamic pressure is ½ × 0.4 × 300² = 18,000 pascals. At snapshot B, density is 0.1 and speed is 600 in the same units. The result is again 18,000 pascals: one quarter of the density offsets four times the squared speed.
B is faster, but these two snapshots have the same q. They do not necessarily have identical drag, because orientation and aerodynamic coefficients could differ. Nor do two equal values locate the flight’s true maximum; intermediate measurements might exceed both. A convincing claim about Max Q requires the time history, not just the highest speed listed on a broadcast or the brightest point in a launch photograph.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read a launch image as an observation

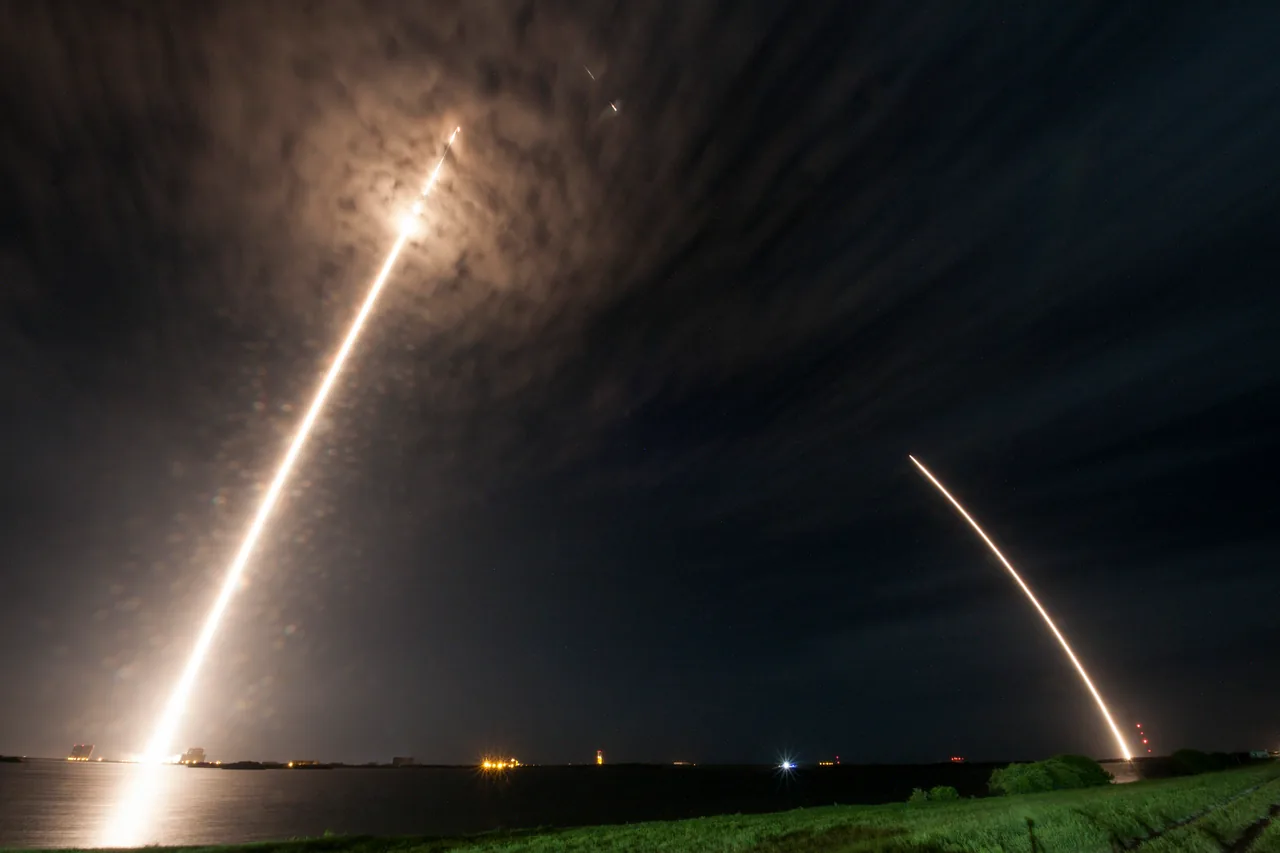

The SpaceX CRS-9 archive image records launch and first- return as light trails in a long exposure. The trails combine events across time and project three-dimensional paths onto one camera view. Their shapes are useful evidence of changing apparent position, but they are not a scaled map of altitude versus time. The returning first stage and the also have different destinations after separation.
To establish , analysts use tracking and navigation data to determine position and velocity. They then check whether the resulting trajectory meets the intended orbit and avoids the dense atmosphere. A high point in the sky, a curved light trail, or a successful booster landing answers a different question. Keep the payload’s orbital outcome distinct from the visually dramatic milestones along the way.
SpaceX’s long-exposure photograph of the CRS-9 Falcon 9 launch and first-stage landing on July 18, 2016. The rising trail at left and return trail at right integrate different moments in one camera view. They are projected light paths, not a single instantaneous scene or a calibrated diagram of the payload’s orbit.
Look closely
Compare the launch and return trails. Which parts of a claim about time, altitude, and payload orbit would need evidence beyond this camera view?
See what to notice
A long exposure records apparent light paths over an interval without giving a calibrated time at each point or a three-dimensional distance scale. The returning booster is separated from the payload. Tracking and mission data, rather than trail curvature alone, establish the payload’s orbital insertion.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
