Lesson 4 of 6 · Staging and mass
Carry less hardware through the next burn
9 minute lesson · 3 checks along the way
Your goal for this lessonExplain staging using changing mass, and apply a clearly limited ideal rocket equation without counting separation as a large free velocity gain.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Propellant leaves; tanks remain
A becomes lighter as it expels , but the emptied tanks, engine, and supporting structure do not disappear. If they remain attached, the next engine must accelerate them along with the useful payload. Staging discards hardware whose assigned job is complete, reducing the mass carried into later flight. It also introduces connections, separation mechanisms, and carefully timed operations that must work reliably.
In serial , stages are arranged one above another and used in sequence. In parallel staging, boosters operate alongside a central vehicle and separate when their work is done. Some launch vehicles combine both patterns. A stage can contain more than one engine, so counting nozzles does not count stages. The Centaur D-1T photograph shows one upper stage with two main engine bells.
Read the mass ratio carefully
For one ideal straight-line burn, a useful relationship is = vₑ × (m₀/m₁). Here Δv is the propulsion velocity change, vₑ is constant effective exhaust speed, m₀ is the vehicle’s mass at the start of the burn, and m₁ is its mass at the end, before discarding hardware. Both masses include everything still attached at their respective moments, including payload and any remaining propellant.
The symbol ln means natural logarithm, and its input is the dimensionless ratio of two masses in matching units. The ideal model neglects external forces and changes in direction. It therefore does not directly give launch altitude, travel time, or the actual orbital speed reached during an atmospheric ascent. Thrust affects how quickly a burn occurs; the ideal velocity budget also depends on exhaust performance and .
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Calculate one burn, then separate
A fictional stage begins its burn at 10 tonnes and ends at 5 tonnes, with 3 kilometers per second. Its mass ratio is 2. Using ln(2) ≈ 0.693 gives ideal Δv ≈ 2.08 kilometers per second. The burned propellant was 5 tonnes, or half the starting mass. That fifty-percent fraction is not the mass ratio of 2.
After the burn, suppose 1 tonne of spent hardware separates, leaving 4 tonnes for later flight. Neglect the small separation impulse: the remaining vehicle does not instantly gain a large speed boost just because it is lighter. Its advantage appears in the next burn, which no longer carries that tonne. Do not use 10/4 for the completed burn; that would count discarded hardware as if it had been expelled by the engine.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
A lighter vehicle still needs a complete plan
A realistic multistage calculation treats each powered interval and separation separately. It includes the mass of upper stages while lower stages operate, and follows any reserves that remain aboard. Extra structural hardware can reduce performance even when the propellant quantity stays the same. Every claim about capacity therefore needs a destination, a vehicle configuration, and a clearly defined mass accounting boundary.
Recovery adds another set of choices. Hardware, propellant reserves, and a return trajectory may enable a stage to be reused, but those provisions participate in the same mass and energy accounting. Staging and reuse are separate concepts: a discarded stage might be recovered or might not. Compare the whole mission, including reliability and operational needs, rather than assuming that an additional stage or a reusable stage always improves every measure.

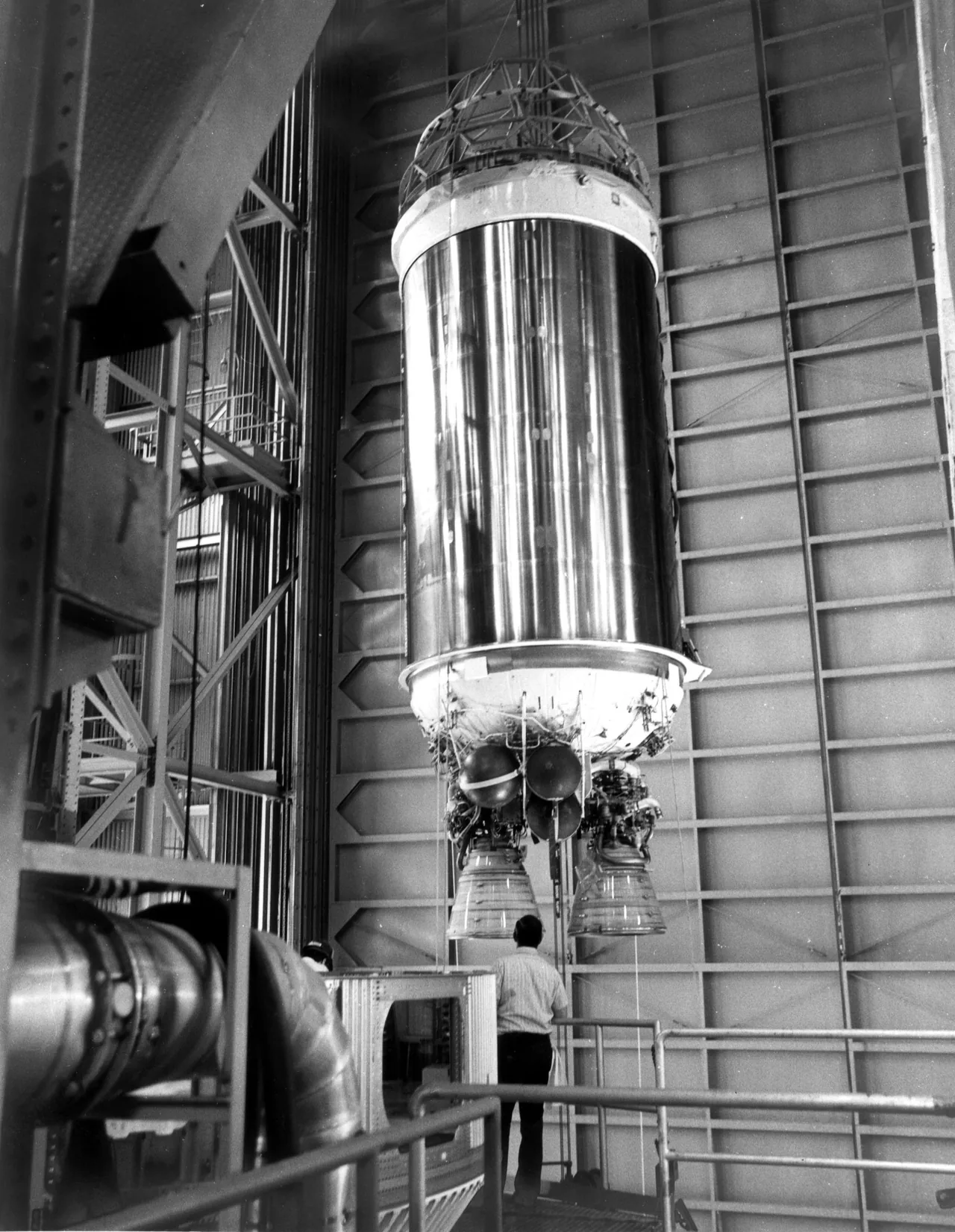

Centaur D-1T upper-stage hardware for Titan IIIE in a preserved NASA photograph. Two main RL10 engine bells sit below the tank structure. The source record does not identify the photographer; its full black-and-white frame is retained. The photograph shows a stage on the ground, not separation in flight or the fictional masses in the worked example.
Look closely
Find the two large main engine bells. Why does seeing two engines not establish that this photograph contains two serial stages?
See what to notice
Both engines belong to this one Centaur stage and share its supporting stage architecture. Engine count is different from the number of separable stages. The tank and structural hardware also remain as mass after their propellant is consumed.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
