Lesson 3 of 6 · Solid and liquid propulsion
The propellant changes the choices
8 minute lesson · 3 checks along the way
Your goal for this lessonCompare chemical propulsion architectures using storage, control, and mission requirements rather than a universal ranking.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Fuel is only part of the propellant
A chemical rocket releases stored chemical energy and expels reaction products. In a common bipropellant system, fuel reacts with a separately supplied . Both contribute to the carried aboard. Liquid oxygen is an oxidizer, not a fuel; liquid hydrogen and kerosene are examples of fuels. Calling every tank a fuel tank can conceal an important part of the vehicle’s mass and operation.
A conventional solid motor stores fuel and oxidizer together in a manufactured solid . Its exposed surface burns, producing gas that flows through a . Grain design helps determine the thrust history, so solid thrust need not remain constant. The visible cylindrical case supports the system, but an external photograph cannot reveal the internal grain geometry or establish how much usable propellant remains.
Control depends on the actual design
Liquid systems deliver propellant from tanks through feed hardware. Some use pumps and some rely on tank pressure. Many liquid engines can shut down, and particular designs can throttle or restart, but those abilities require suitable hardware and demonstrated operating conditions. A restart after a long coast also depends on such things as ignition, propellant temperature, and getting liquid rather than unwanted gas to the inlet.
Conventional launch-vehicle solid boosters normally burn through their planned firing once ignited; they do not provide the routine valve-controlled shutdown and restart of a suitable liquid system. That is a design distinction, not a claim that every solid motor in existence behaves identically. Solids can supply strong launch , while liquid systems can provide different control options. Neither category is automatically the best for every mission.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Choose against a stated requirement
A fictional upper needs a first burn, a forty-minute coast, and a second burn at a specified time. Candidate S is a conventional solid motor certified for one continuous firing. Candidate L is a liquid engine with a tested restart system and propellant management covering that coast. L matches the requirement. Merely choosing the motor with the largest initial thrust would miss the needed second firing.
Now audit a separate mass sheet: the stage carries 2,000 kilograms of fuel and 6,000 kilograms of oxidizer. Its initial propellant load is 8,000 kilograms, before adding tanks, engines, , or reserves listed elsewhere. This is an invented bookkeeping example, not a recipe or a recommended mixture. Its purpose is to check that a design comparison counts both reactive substances rather than only the fuel.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Combine useful capabilities
The Artemis I Space Launch System, in its SLS Block 1 configuration, paired solid boosters with a liquid core stage. Its core engines used liquid hydrogen and liquid oxygen; the boosters supplied additional thrust early in flight. This historical configuration shows that solid and liquid propulsion can complement one another within a single vehicle. The archive photograph records assembled hardware in a building, not the appearance of propellant burning inside it.
Storage conditions also affect the choice. liquids require very low temperatures and careful management of heat entering their tanks. Some other liquid propellants can remain stored longer under suitable conditions, with different handling and material constraints. A mission decision must include duration, required control, hardware mass, and the evidence from tests. Category labels summarize an architecture; they cannot replace a specification for a particular engine and mission.

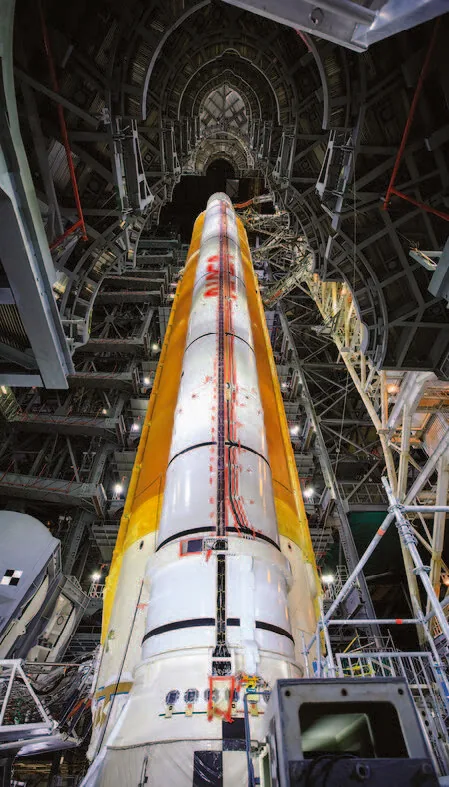

Artemis I booster and core-stage hardware inside the Vehicle Assembly Building, in the NASA image preserved with the SLS five-segment booster record. The white booster casing is visible beside the orange core stage. This is an assembly photograph, not a cutaway, a firing test, or a view of the propellant inside the hardware.
Look closely
Compare the visible booster casing with the adjoining core stage. Can their external appearance alone establish internal propellant type or restart capability?
See what to notice
The image helps locate separate hardware within the assembled system. Internal propellants and control capabilities come from engineering documentation and tests, not their paint color or apparent size. The lesson’s solid/liquid distinction rests on those documented systems.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
