Lesson 2 of 6 · Engines and launch vehicles
An engine needs a whole vehicle
8 minute lesson · 3 checks along the way
Your goal for this lessonDistinguish an engine, a stage, and a launch vehicle, and compare thrust with propellant efficiency.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Separate the nested systems
An engine produces , but an engine on a laboratory stand is not a launch vehicle. A chemical engine includes a combustion chamber, a , and hardware that controls and delivers propellant. A stage adds tanks or a solid motor casing, structure, and associated systems. A launch vehicle combines its stages with guidance, interfaces, and other hardware needed to carry a payload along a planned trajectory.
The is what the launch is meant to deliver: perhaps a satellite, a robotic explorer, or a spacecraft carrying people. Depending on the accounting boundary, an upper can be treated as payload while analyzing the stage below it. Naming that boundary prevents double counting. The early RL10 photograph, used as context for the RL10A-1 record, illustrates one component of a larger Centaur stage, not everything needed for flight.
Make hot gas useful
Inside a chemical engine, a reaction supplies energy to hot, pressurized gas. A nozzle directs and accelerates the exhaust. Its shape must suit the operating conditions: a nozzle designed for low surrounding pressure faces different constraints from one operating near sea level. Cooling and materials must protect hardware while it transfers force into the vehicle. The large visible bell is only part of that system.
Engineers also measure , usually written Isp. It expresses thrust per mass-flow rate, divided by the standard reference acceleration g₀. That reference is about 9.81 meters per second squared, even when an engine operates far from Earth. Isp has units of seconds, but it is not the engine’s maximum firing time. Higher Isp means more impulse per kilogram of consumed propellant under the stated conditions.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Compare two engine specification cards
For a fictional comparison, use g₀ = 10 meters per second squared. Engine A produces 20,000 newtons while consuming 10 kilograms each second: Isp = 20,000 ÷ (10 × 10) = 200 seconds. Engine B produces 10,000 newtons while consuming 4 kilograms each second: Isp = 10,000 ÷ (4 × 10) = 250 seconds. A provides more thrust; B provides more impulse per kilogram.
Which is preferable depends on the job. A heavy launcher may need the larger force immediately, while a maneuvering stage may value reduced propellant demand. These two numbers do not specify engine mass, restart capability, reliability, cost, or the vehicle’s final velocity. You cannot select a complete mission design by ranking one engine statistic and ignoring the rest of the spacecraft.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Evidence comes from operating hardware
Development teams test engines alone and then test how tanks, feed lines, structures, controls, and engines behave together. A stable firing on a test stand is valuable evidence, but it does not independently prove that a complete vehicle will steer correctly or separate its stages. Conversely, an engine problem may originate in how the surrounding system supplies propellant rather than in the nozzle itself.
NASA’s early Centaur work combined engine research with tank, insulation, and restart studies. Those linked tasks explain why successful rocketry involves people with many specialties. Read hardware photographs in the same way: identify the visible component, then list the important interfaces outside the frame. A polished engine display is a starting point for understanding a system, not a complete performance report.

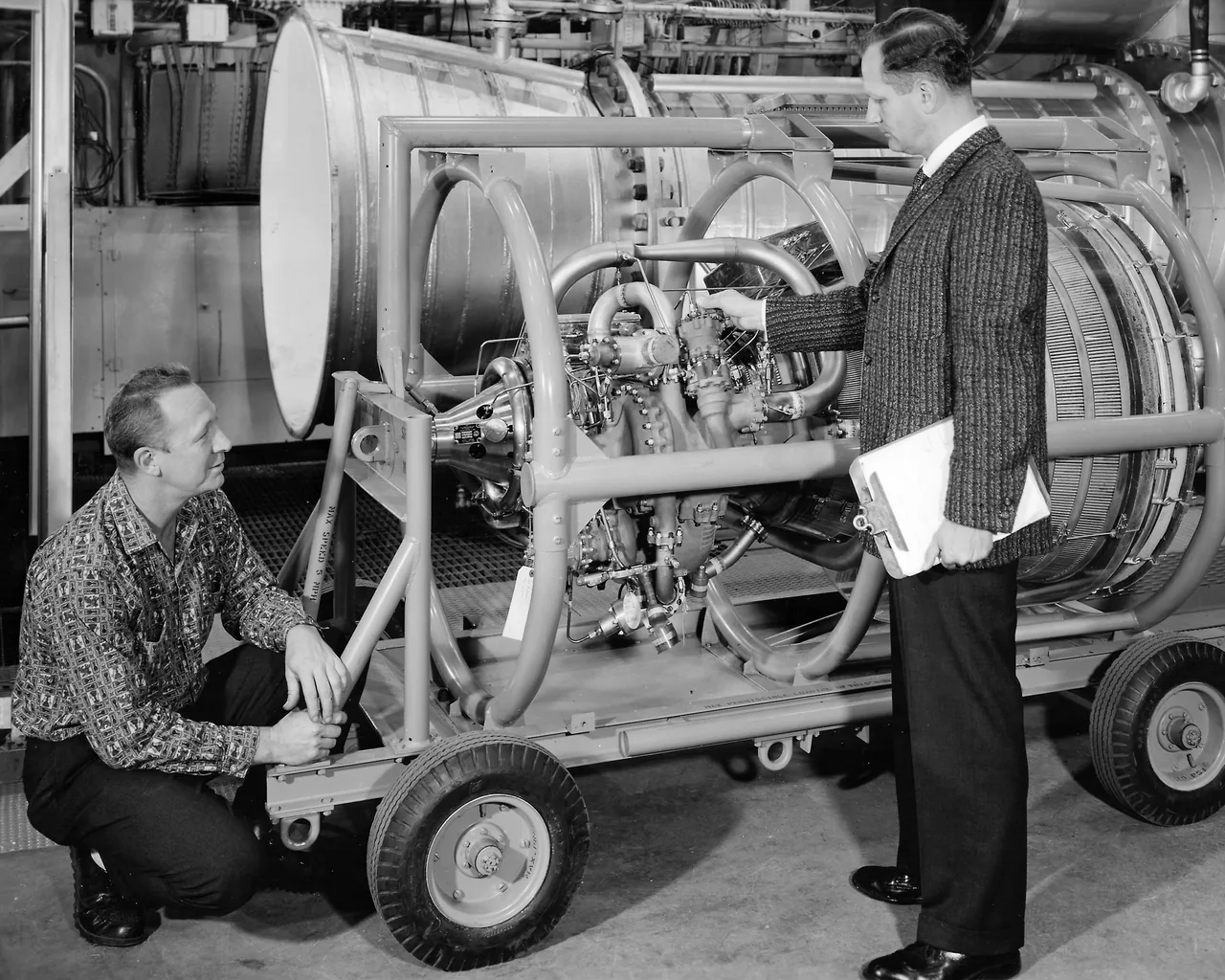

An early RL10 engine at NASA’s Lewis Research Center, photographed by Paul Riedel on October 20, 1960. The archive uses this as historical context for the RL10A-1 record; the photograph does not independently identify a particular flight engine or certify its performance. The original black-and-white frame and laboratory surroundings are retained.
Look closely
Locate the nozzle and connecting pipes. Which important parts of a flight stage are outside this component view?
See what to notice
A complete stage also needs propellant storage, flight structure, controls, and interfaces with the payload or other stages. The wheeled laboratory support is not a flight stage. Identifying an engine in a photograph does not establish integrated flight readiness.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
